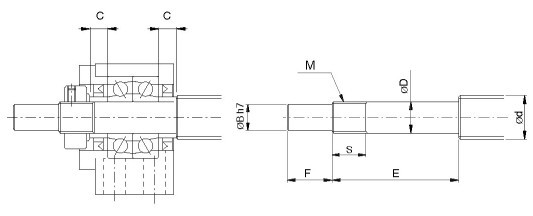

建议轴端加工尺寸（固定侧）---BK型
型号 |
滚珠丝杠轴外径 |
轴端部外径 |
|
|
|
公称螺纹 |
套筒长度 |
d |
D h7 |
B |
E |
F |
M |
S |
C |
BK10 |
12/14/15 |
10 |
8 |
36 |
15 |
M10*1 |
12 |
5.5 |
BK12 |
14/15/16 |
12 |
10 |
36 |
15 |
M12*1 |
12 |
5.5 |
BK15 |
18/20 |
15 |
12 |
40 |
20 |
M15*1 |
12 |
6 |
BK17 |
20/25 |
17 |
15 |
53 |
23 |
M17*1 |
17 |
7 |
BK20 |
25/28 |
20 |
17 |
53 |
25 |
M20*1 |
15 |
8 |
BK25 |
32/36 |
25 |
20 |
66 |
30 |
M25*1.5 |
20 |
9 |
BK30 |
36/40 |
30 |
25 |
73 |
38 |
M30*1.5 |
25 |
9 |
BK35 |
45 |
35 |
30 |
82 |
45 |
M35*1.5 |
26 |
12 |
BK40 |
50 |
40 |
35 |
94 |
50 |
M40*1.5 |
30 |
15 |

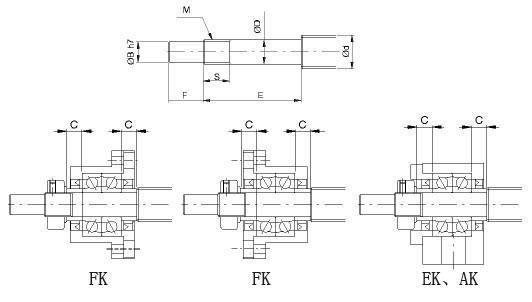

建议轴端加工尺寸（固定侧）---FK、EK、AK型
型 号 |
滚珠丝杠轴外径 |
轴端部外径 |
|
|
|
公称螺纹 |
套筒长度 |
FK型 |
EK型 |
AK型 |
d |
D h7 |
B |
E |
F |
M |
S |
C |
FK05 |
EK05 |
- |
8 |
5 |
4 |
23 |
6 |
M5*0.5 |
7 |
3.5 |
FK06 |
EK06 |
- |
8 |
6 |
4 |
28 |
8 |
M6*0.75 |
8 |
5 |
FK08 |
EK08 |
- |
10/12 |
8 |
6 |
32 |
9 |
M8*1 |
10 |
5.5 |
FK10 |
EK10 |
AK10 |
12/14/15 |
10 |
8 |
36 |
15 |
M10*1 |
12 |
5.5 |
FK12 |
EK12 |
AK12 |
14/15/16 |
12 |
10 |
36 |
15 |
M12*1 |
12 |
5.5 |
FK15 |
EK15 |
AK15 |
18/20 |
15 |
12 |
48 |
20 |
M15*1 |
13 |
10 |
FK17 |
- |
- |
20/25 |
17 |
17 |
59 |
23 |
M17*1 |
17 |
10 |
FK20 |
EK20 |
AK20 |
25/28/30 |
20 |
20 |
63 |
25 |
M20*1 |
15 |
11 |
FK25 |
- |
AK25 |
30/32/36 |
25 |
25 |
76 |
30 |
M25*1.5 |
20 |
14 |
FK30 |
- |
- |
36/40 |
30 |
30 |
73 |
38 |
M30*1.5 |
25 |
9 |
建议轴端加工尺寸（支撑侧）---FF、EF、BF、AF型
型 号 |
滚珠丝杠轴外径 |
轴端部外径 |
|
|
|
|
FF型 |
EF型 |
BF型 |
AF型 |
d |
D h7 |
E |
B |
F |
G |
FF06 |
EF06 |
- |
- |
8 |
6 |
9 |
5.7 |
6.8 |
0.8 |
- |
EF08 |
- |
- |
10 |
6 |
9 |
5.7 |
6.8 |
0.8 |
FF10 |
EF10 |
BF10 |
AF10 |
12/14/15 |
8 |
10 |
7.6 |
7.9 |
0.9 |
FF12 |
EF12 |
BF12 |
AF12 |
14/15/16 |
10 |
11 |
9.6 |
9.15 |
1.15 |
FF15 |
EF15 |
BF15 |
AF15 |
18/20 |
15 |
13 |
14.3 |
10.15 |
1.15 |
FF17 |
- |
BF17 |
- |
20/25 |
17 |
16 |
16.2 |
13.15 |
1.15 |
FF20 |
EF20 |
BF20 |
AF20 |
25/28/30 |
20 |
19(16) |
19 |
15.35(13.35) |
1.35 |
FF25 |
- |
BF25 |
AF25 |
30/32/36 |
25 |
20 |
23.9 |
16.35 |
1.35 |
FF30 |
- |
BF30 |
- |
36/40 |
30 |
21 |
28.6 |
17.75 |
1.75 |
- |
- |
BF35 |
- |
40/45 |
35 |
22 |
33 |
18.75 |
1.75 |
- |
- |
BF40 |
- |
50 |
40 |
23 |
38 |
19.95 |
1.95 |
