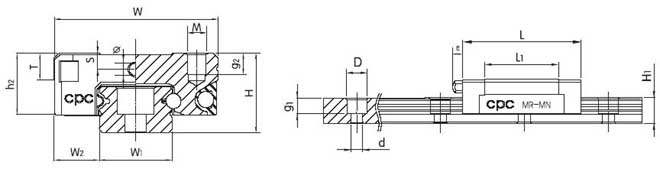

型号规格	组装尺寸		轨道尺寸(mm)				滑座尺寸(mm)
	H	W2	W1	H1	P	D×d×g1	W	L	L1	P1	P2	Φ	E	h2	M×g2	S	T
MR15ML	16	8.5	15	9.5	40	6×3.5×4.5	32	60	44	25	25	2.5	3.6	12	M3×5.5	2.8	4.3
MR15MN	16	8.5	15	9.5	40	6×3.5×4.5	32	43	27	20	25	2.5	3.6	12	M3×5.5	2.8	4.3
MR12ML	13	7.5	12	7.5	25	6×3.5×4.5	27	47.4	34	20	20	2	-	10	M3×3.5	2.6	4.3
MR12MN	13	7.5	12	7.5	25	6×3.5×4.5	27	35.4	22	15	20	2	-	10	M3×3.5	2.6	4.3
MR9ML	10	5.5	9	5.5	20	6×3.5×4.5	20	39.5	29.5	16	15	1.5	-	7.8	M3×2.8	2.2	3.3
MR9MN	10	5.5	9	5.5	20	6×3.5×4.5	20	30.5	19.5	10	15	1.5	-	7.8	M3×2.8	2.2	3.3
MR7ML	8	5	7	4.7	15	4.2×2.4×2.3	17	30.4	23	13	12	1.2	-	6.5	M2×2.5	1.7	2.8
MR7MN	8	5	7	4.7	15	4.2×2.4×2.3	17	21.7	14.3	8	12	1.2	-	6.5	M2×2.5	1.7	2.8
MR5ML	6	3.5	5	3.5	15	3.5×2.4×1	12	19.5	13.5	7	-	0.8	-	4.5	M2.6×2.0	1.1	2
MR5MN	6	3.5	5	3.5	15	3.5×2.4×1	12	16	10	-	8	0.8	-	4.5	M2×1.5	1.1	2
MR3ML	4	2.5	3	2.6	10	M1.6	8	16	11	-	5.5	-	-	3.3	M2×1.1	-	1.5
MR3MN	4	2.5	3	2.6	10	M1.6	8	11.7	6.7	-	3.5	-	-	3.3	M1.6×1.1	-	1.5

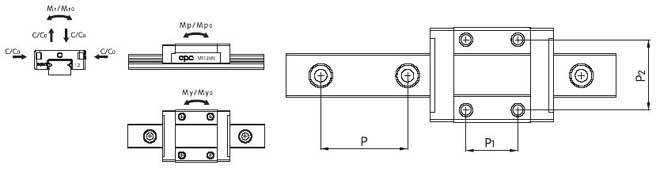

型号规格	基本额定负荷(N)		静扭矩(Nm)			重量
	C(dyn.)	Co(stat.)	Mro	Mpo	Myo	Block g	Rail g/m
MR 15ML	5350	9080	70	26.9	26.9	90	1010
MR 15MN	3810	5590	43.6	10.9	10.9	53	1010
MR 12ML	3240	5630	34.9	16	16	51	600
MR 12MN	2308	3465	21.5	9.5	9.5	34	600
MR 9ML	2135	3880	18.2	12.4	12.4	25	330
MR 9MN	1570	2495	11.7	6.4	6.4	17	330
MR 7ML	1310	2440	9	7.7	7.7	16	230
MR 7MN	890	1400	5.2	3.3	3.3	9	230
MR 5ML	470	900	2.4	2.1	2.1	3.3	120
MR 5MN	335	550	1.7	1	1	3	120
MR 3ML	295	575	0.9	1.1	1.1	1.2	53
MR 3MN	190	310	0.6	0.4	0.4	0.9	53
