首页 >> 直线导轨 >> HIWIN直线导轨HGL-CA/HA系列尺寸表 |
|
型号 |
组件尺寸 |

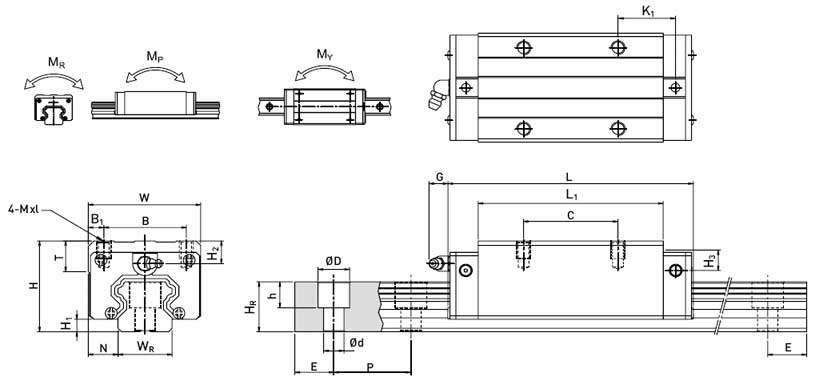

滑块尺寸 |
导轨尺寸 |
|
H |
H1 |
N |
W |
B |
B1 |
C |
L1 |
L |
K1 |
G |
M×l |
T |
H2 |
H3 |
WR |
HR |
D |
h |
d |
P |
E |
HGL15CA |
24 |
4.3 |
9.5 |
34 |
26 |
4 |
26 |
39.4 |
61.4 |
10 |
5.3 |
M4x4 |
6 |
3.95 |
3.7 |
15 |
15 |
7.5 |
5.3 |
4.5 |
60 |
20 |
HGL25CA |
36 |
5.5 |
12.5 |
48 |
35 |
6.5 |
35 |
58 |
84 |
16.8 |
12 |
M6x6 |
8 |
6 |
9 |
23 |
22 |
11 |
9 |
7 |
60 |
20 |
HGL25HA |
50 |
78.6 |
104.6 |
19.6 |
HGL30CA |
42 |
6 |
16 |
60 |
40 |
10 |
40 |
70 |
97.4 |
20.25 |
12 |
M8x10 |
8.5 |
6.5 |
11 |
28 |
26 |
14 |
12 |
9 |
80 |
20 |
HGL30HA |
60 |
93 |
120.4 |
21.8 |
HGL35CA |
48 |
7.5 |
18 |
70 |
50 |
10 |
50 |
80 |
112.4 |
20.6 |
12 |
M8x12 |
10.2 |
9 |
13 |
34 |
29 |
14 |
12 |
9 |
80 |
20 |
HGL35HA |
72 |
105.8 |
138.2 |
22.5 |
HGL45CA |
60 |
9.5 |
20.5 |
86 |
60 |
13 |
60 |
97 |
139.4 |
23 |
13 |
M10x17 |
16 |
8.5 |
21 |
45 |
38 |
20 |
17 |
14 |
105 |
22.5 |
HGL45HA |
80 |
128.8 |
171.2 |
28.9 |
HGL55CA |
70 |
13 |
23.5 |
100 |
75 |
12.5 |
75 |
117.7 |
166.7 |
27.4 |
13 |
M12x18 |
17.5 |
12 |
19 |
53 |
44 |
23 |
20 |
16 |
120 |
30 |
HGL55HA |
95 |
155.8 |
204.8 |
36.4 |
导轨固定螺栓尺寸 |
基本动额定载荷 |
基本静额定载荷 |
静态额定力矩 |
重量 |
型号 |
MR |
MP |
MY |
滑块 |
滑轨 |
(mm) |
C(kN) |
C0(kN) |
kN-m |
kN-m |
kN-m |
kg |
kg/m |
M4x16 |
11.38 |
25.31 |
0.17 |
0.15 |
0.15 |
0.14 |
1.45 |
HGL15CA |
M6x20 |
26.48 |
56.19 |
0.64 |
0.51 |
0.51 |
0.42 |
3.21 |
HGL25CA |
32.75 |
76.00 |
0.87 |
0.88 |
0.88 |
0.57 |
HGL25HA |
M8x25 |
38.74 |
83.06 |
1.06 |
0.85 |
0.85 |
0.78 |
4.47 |
HGL30CA |
47.27 |
110.13 |
1.40 |
1.47 |
1.47 |
1.03 |
HGL30HA |
M8x25 |
49.52 |
102.87 |
1.73 |
1.20 |
1.20 |
1.14 |
6.30 |
HGL35CA |
60.21 |
136.31 |
2.29 |
2.08 |
2.08 |
1.52 |
HGL35HA |
M12x35 |
77.57 |
155.93 |
3.01 |
2.35 |
2.35 |
2.08 |
10.41 |
HGL45CA |
94.54 |
207.12 |
4.00 |
4.07 |
4.07 |
2.75 |
HGL45HA |
M14x45 |
114.44 |
227.81 |
5.66 |
4.06 |
4.06 |
3.25 |
15.08 |
HGL55CA |
139.35 |
301.26 |
7.49 |
7.01 |
7.01 |
4.27 |
HGL55HA |
