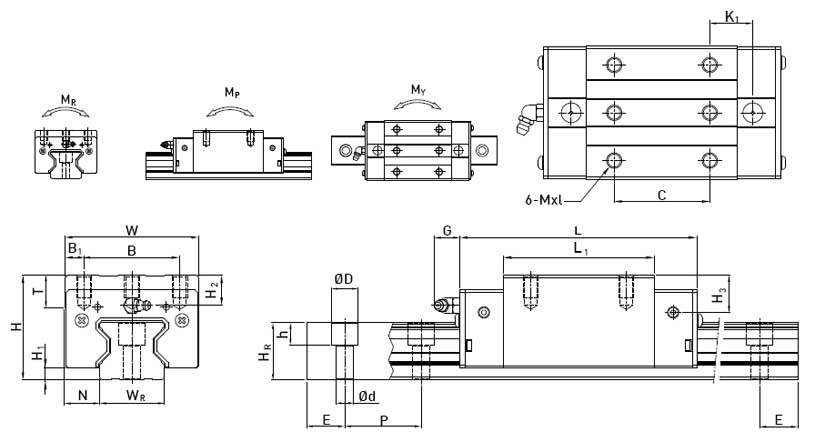

首页 >> 直线导轨 >> HIWIN直线导轨RGH-CA/HA系列尺寸表 |
|
型号 |
组件尺寸 |
滑块尺寸 |
导轨尺寸 |
|
H |
H1 |
N |
W |
B |
B1 |
C |
L1 |
L |
K1 |
G |
M*l |
T |
H2 |
H3 |
WR |
HR |
D |
h |
d |
P |
E |
RGH25CA |
40 |
5.5 |
12.5 |
48 |
35 |
6.5 |
35 |
64.5 |
97.9 |
20.75 |
12 |
M6x8 |
9.5 |
10.2 |
10 |
23 |
23.6 |
11 |
9 |
7 |
30 |
20 |
RGH25HA |
81 |
114.4 |
21.5 |
RGH30CA |
45 |
6 |
16 |
60 |
40 |
10 |
40 |
71 |
109.8 |
23.5 |
12 |
M8x10 |
9.5 |
9.5 |
13.8 |
28 |
28 |
14 |
12 |
9 |
40 |
20 |
RGH30HA |
93 |
131.8 |
24.5 |
RGH35CA |
55 |
6.5 |
18 |
70 |
50 |
10 |
50 |
79 |
124 |
22.5 |
12 |
M8x12 |
12 |
16 |
19.6 |
34 |
30.2 |
14 |
12 |
9 |
40 |
20 |
RGH35HA |
106.5 |
151.5 |
25.25 |
RGH45CA |
70 |
8 |
20.5 |
86 |
60 |
13 |
60 |
106 |
153.2 |
31 |
12.9 |
M10x17 |
16 |
20 |
24 |
45 |
38 |
20 |
17 |
14 |
52.5 |
22.5 |
RGH45HA |
139.8 |
187 |
37.9 |
RGH55CA |
80 |
10 |
23.5 |
100 |
75 |
12.5 |
75 |
125.5 |
183.7 |
37.75 |
12.9 |
M12x18 |
17.5 |
22 |
27.5 |
53 |
44 |
23 |
20 |
16 |
60 |
30 |
RGH55HA |
173.8 |
232 |
51.9 |
RGH65CA |
90 |
12 |
31.5 |
126 |
76 |
25 |
70 |
160 |
232 |
60.8 |
12.9 |
M16x20 |
25 |
15 |
15 |
63 |
53 |
26 |
22 |
18 |
75 |
35 |
RGH65HA |
223 |
295 |
67.3 |
导轨固定螺栓尺寸 |
基本动额定载荷 |
基本静额定载荷 |
静态额定力矩 |
重量 |
型 号 |
MR |
MP |
MY |
滑块 |
滑轨 |
(mm) |
C(kN) |
C0(kN) |
kN-m |
kN-m |
kN-m |
kg |
kg/m |
M6x20 |
27.7 |
57.1 |
0.758 |
0.605 |
0.605 |
0.55 |
3.08 |
RGH25CA |
33.9 |
73.4 |
0.975 |
0.991 |
0.991 |
0.7 |
RGH25HA |
M8x25 |
39.1 |
82.1 |
1.445 |
1.06 |
1.06 |
0.82 |
4.41 |
RGH30CA |
48.1 |
105 |
1.846 |
1.712 |
1.712 |
1.07 |
RGH30HA |
M8x25 |
57.9 |
105.2 |
2.17 |
1.44 |
1.44 |
1.43 |
6.06 |
RGH35CA |
73.1 |
142 |
2.93 |
2.6 |
2.6 |
1.86 |
RGH35HA |
M12x35 |
92.6 |
178.8 |
4.52 |
3.05 |
3.05 |
2.97 |
9.97 |
RGH45CA |
116 |
230.9 |
6.33 |
5.47 |
5.47 |
3.97 |
RGH45HA |
M14x45 |
130.5 |
252 |
8.01 |
5.4 |
5.4 |
4.62 |
13.98 |
RGH55CA |
167.8 |
348 |
11.15 |
10.25 |
10.25 |
6.4 |
RGH55HA |
M16x50 |
213 |
411.6 |
16.2 |
11.59 |
11.59 |
8.33 |
20.22 |
RGH65CA |
275.3 |
572.7 |
22.55 |
22.17 |
22.17 |
11.62 |
RGH65HA |
